Roland

tactile switch 7,3 mm
ALPS
tactile switch 7,3 mm
1 pcs. tactile switch suitable for modelsKorg DW6000, DW8000Korg Poly 61Korg KPR 77Roland JX 8PRoland TR606, TB303Yamaha DX7, DX9Oberheim Matrix 6Kurzweil K1000Kurzweil K2000Part Number: Korg: 37505000, Roland: 1129715,Yamaha: KA905510The old productnumber was called: KHC10901The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

From
€ 0 .93*

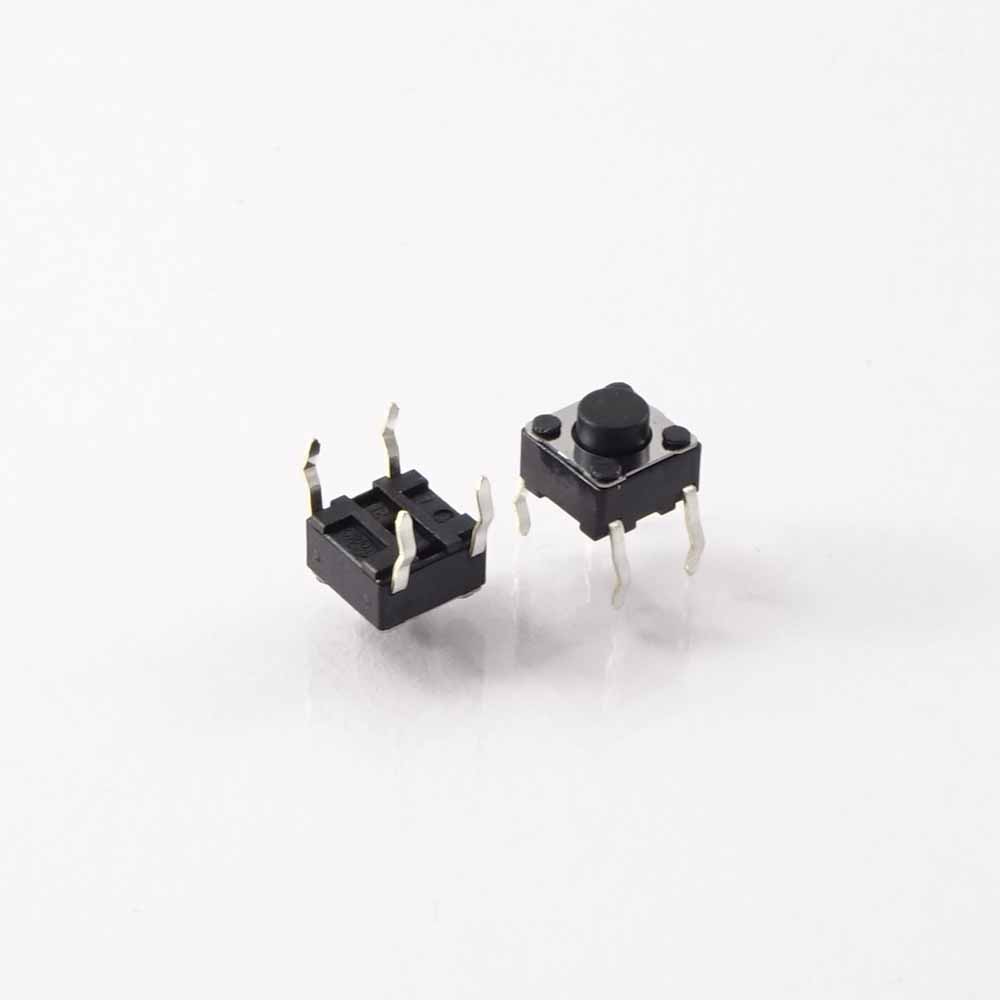

tactile switch 5 mm for Roland
Panasonic
tactile switch 5 mm for Roland
1 pcs. tactile switch suitable for models RolandFP1, FP2, FP3, FP4, FP5, FP6, FP7, FP8, FP-50JV25, JV30, JV35, JV50, JV80, JV90, JV880, JV1080JP8000JD800     - Cursor ButtonsMC-303, MC-307RD-500XP10, XP50, XP60, XP80XV3080U20Fantom X6,X7,X8           without REC/PLAY/STOPOnly for non-illuminated buttons:A90, A90-EXXP30JV1000JP8080RD-600,RD-700Roland Part Number: 13169697 or 13169752The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

From
€ 0 .65*
Replacement parts for Roland PA4 and PA4A Keyboard
Roland
Replacement parts for Roland PA4 and PA4A Keyboard
Parts Keyboard: Fulcrum 12P
Spare parts for Roland PA4 and PA4AKeyboardHere you will find different parts for Progressive Hammer Action Keyboard from Roland. These PA4 Keyboard was build by Roalnd in two different Versions. There exists a PA4 and a PA4A Version. The Parts i offer here fits for both Versions. Cusion, FeltHammerKey GuidePrice is valid for one spare part. Lower Cusion for Hammer in a Roalnd PA4 or Pa4A Keyboard (PArt-No: TTROPA4-ZU-FLTHA1)This Cussion is needed to stop hammer when falling down.Roland use here a material based on two different components.One side is self-adhesive.For a complette Keyboard wit 88 Keys you will need 2 of these cusionTTROPA4-ZU-FLTHA1.For all other Felt and Cusions you will need one part for a complete Keyboard.

Variants from €1.49*
€ 17 .90*

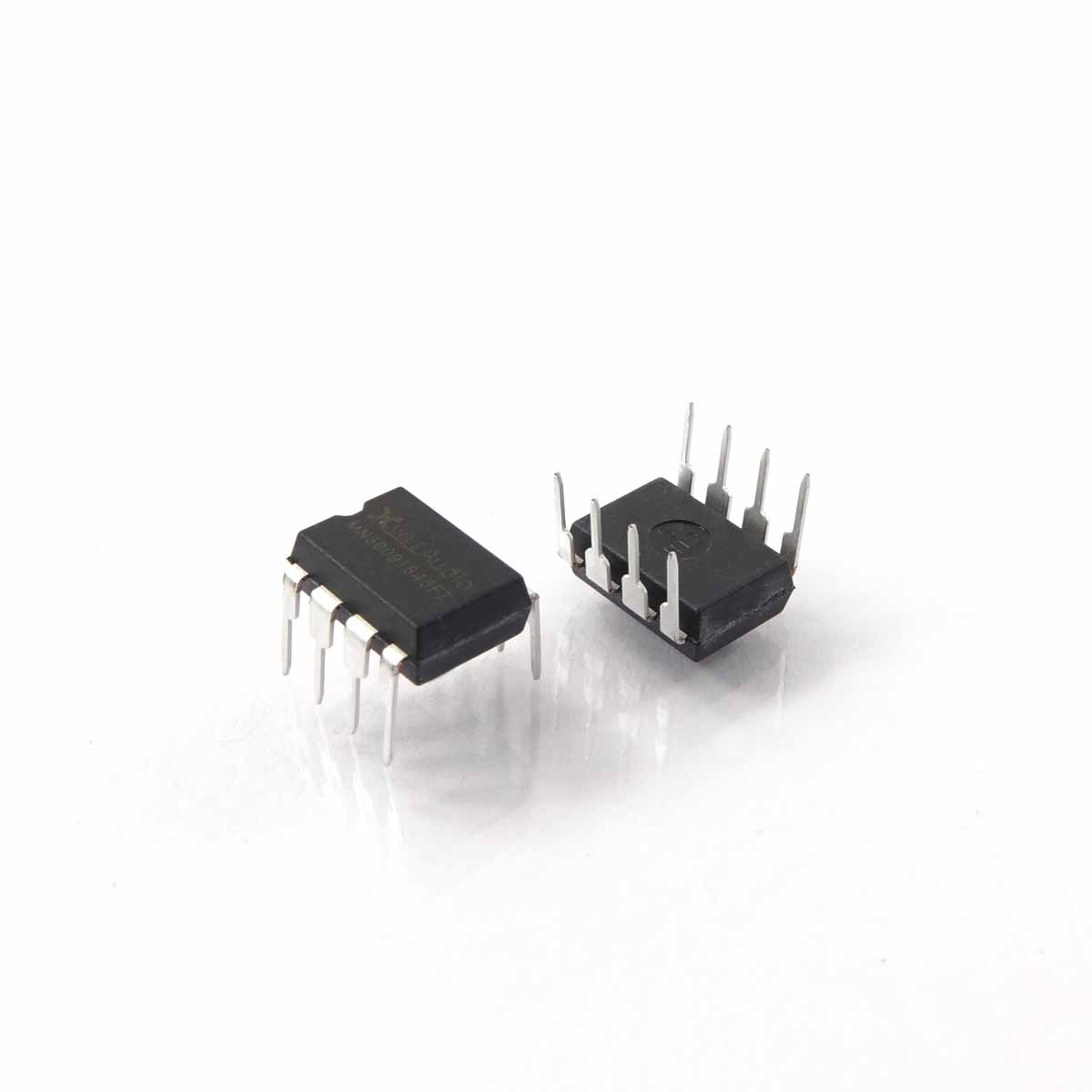

Xvive MN3009 256 Stage BBD DIP8
Xvive Audio
Xvive MN3009 256 Stage BBD DIP8
1 pcs. Xvive MN3009 256 Stage BBD DIP8  -   Panasonic MN3009 cloneRebuild of the MN3009 BBD from Panasonic. We think that it is a 1:1 clone from original Panasonic Chip. Comment from a college:Noise level and spectrum similar to that of an intact Panasonic MN3009. In direct comparison with a usual defective Panasonic chip (which still works, but just typically rushes) was the difference between sea surf and reasonably constant background noise clearly. That is spoken in some forums of completely noise-free, I can not understand ..... FeaturesVariable delay time from 0.64ms to 12.8msWide dynamic range 88dB (typ)Total harmonic distortion <0.3%Clock frequency from 10Hz to 200KHz Package: DIP-8    Mechanical Description:The IC is housed in a DIP 8 package and is designed for trughhole mounting on a circuit board. THis chip is pin compatible to Panasonic MN3009.ICs are sensitive to static charge! Handle with care. Semiconductors are excluded from exchange.

From
€ 12 .44*
YKB21-5012 - Phone Jack 1/4- 6.3 mm for printed circuits Mono
Jalco
YKB21-5012 - Phone Jack 1/4- 6.3 mm for printed circuits Mono
1 pcs. Phone Jack 1/4 inch- 6.3 mm, Mono for printed circuit used in Korg, Roland or Yamaha Instrumentsthis Phone Jack corresponds to these parts:YKB21-5012HLJ 4306HLJ 4306-01-3000Mono with switchit is used by the following manufaturesKorg          partnumber: 454004300Roland       partnumber: 13449146Yamaha     partnumber: VB312600     YKB21-5012Yamaha     partnumber: VE742000     HLJ 4306These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

From
€ 2 .49*
tactile switch for Roland JD800 Discontinued
ALPS
tactile switch for Roland JD800 Discontinued
1 pcs tactile switch suitable for Roland JD800These switch is for User ButtonsRoland Part Number: 13169727The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

From
€ 1 .73*
Bipolar Capacitor 10uF/16V for Audio, Radial, Nichicon Muse ES
Nichicon
Bipolar Capacitor 10uF/16V for Audio, Radial, Nichicon Muse ES
1 piece bipolar Elko 10uF/16V for Audio circuitsManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The series Muse ES is developt spezial for use in audio signals path.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

€ 0 .93*
YKB21-5010 - Phone Jack 1/4 - 6.3 mm PCB Stereo
Jalco
YKB21-5010 - Phone Jack 1/4 - 6.3 mm PCB Stereo
1 pcs. Phone Jack 1/4 inch- 6.3 mm, stereo, for printed circuit used in  Korg, Roland or Yamaha Instrumentsthis phone jack corresponds to these parts:YKB21-5010HLJ0520-01-010HLJ1520-01-3010HTJ-064-10Dsame PCB layout, different housingHLJ4416-01-3020it is used by the following manufaturesKorg          partnumber: 454004400Roland      partnumber: 13449125   HLJ0520-01-010Roland      partnumber: 13449145   YKB21-5010Yamaha     partnumber: VE382300Technical description Jalco YKB21-5010:The offered phone jack for PCB mounting is a stereo jack without switching contact for 1/4 inch. The housing is made of black synthetic material and the electrical parts are made of a copper alloy with a tin coating. This phone jack is available from various manufacturers in the same mechanical and technical construction. An exception is the manufacturer HOSIDEN using a wider housing. The electrical connection has the same structure.Praktikal tip:These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

From
€ 2 .56*
YKB21-5074 - Phone Jack 1/4 - 6.3 mm PCB Stereo with switch
Jalco
YKB21-5074 - Phone Jack 1/4 - 6.3 mm PCB Stereo with switch
Phone Jack 1/4 inch- 6.3 mm, stereo with switch, for printed circuit used in  Korg, Roland or Yamaha Instrumentsthis phone jack corresponds to these parts:YKB21-5074SCJ630P5PJ603Technical descriptionThe offered phone jack for PCB mounting is a stereo jack with switching contact for 1/4 inch. The housing is made of black synthetic material and the electrical parts are made of a copper alloy with a tin coating. Praktikal tip:These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

From
€ 2 .49*

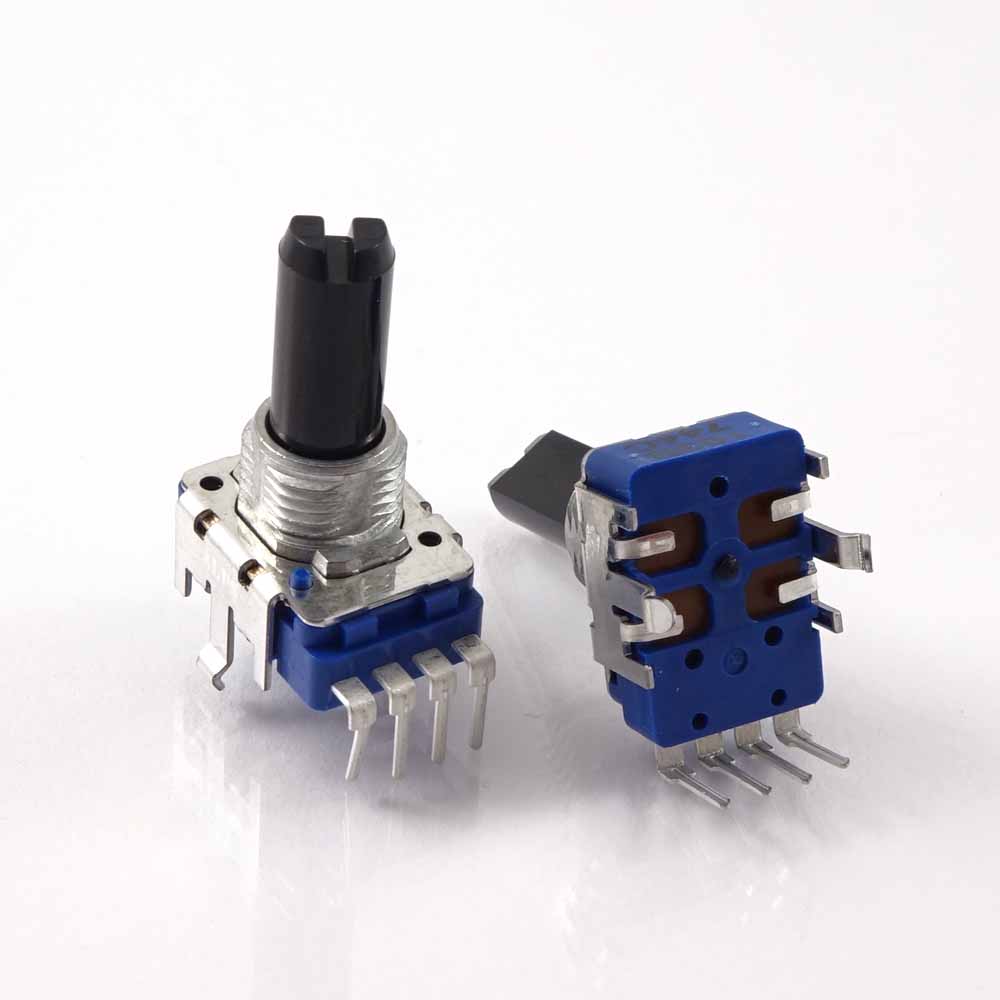

Rotary Poti vertikal, 11x11 10kOhm
Synth-Parts
Rotary Poti vertikal, 11x11 10kOhm
1 pcs. Rotary Potentiometer vertikal 11x11 mm. 10kOhmSubstitute rotary potentiometer forKorg Kronos     -   MIX SectionRoland MC-909Yamaha RS-7000   - without Center Click The here shown substitute fits also inKorg M3Korg electribe EMX1Korg electribe ESX1Korg Oasys EqualizerKorg Triton lehere the axis sticks out 2,5 mm.Electrical properties:The nominal resistance has 10 kOhm, the electric resistance gradient runs linear.Appearance (technical characterisation):The casing measures 11 x 11 mm, the total length without pins is 25 mm. In this total length the casing is 7,5 mm long. On this casing is the thread with 5 mm length connected and out of the thread the axis rises with 12,5 mm length. The axis has a diameter of 6 mm and is flattened on a length of 12 mm. It is made of black plastic. Its head has a slot and ends in corner radius. The thread, which surrounds the axis, has the screw measure M9 x 0,75 mm.The four solder contact pins are 0,8 mm wide (one of them) and they are arranged in a raster in a distance of 2,5 mm. The bented pins, which are sticking out to the front, are necessary for the electrical function, in which the fourth pin has no electrical function.In the back range of the casing the metallic edge-socket connector is mounted. The connector will be fixed at the printed circuit board by pressing in the snap in pin. Between the two snap in holdings the distance is 13 mm. The holders latch in the board and fix the potentiometer mechanically.Useful hint:The potentiometer is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

€ 4 .94*
Bipolar Capacitor 4,7uF/50V for Audio, Radial, Nichicon Muse ES
Nichicon
Bipolar Capacitor 4,7uF/50V for Audio, Radial, Nichicon Muse ES
1 piece bipolar Elko 4,7uF/50V for Audio circuitsManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The series Muse ES is developt spezial for use in audio signals path.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

€ 0 .89*

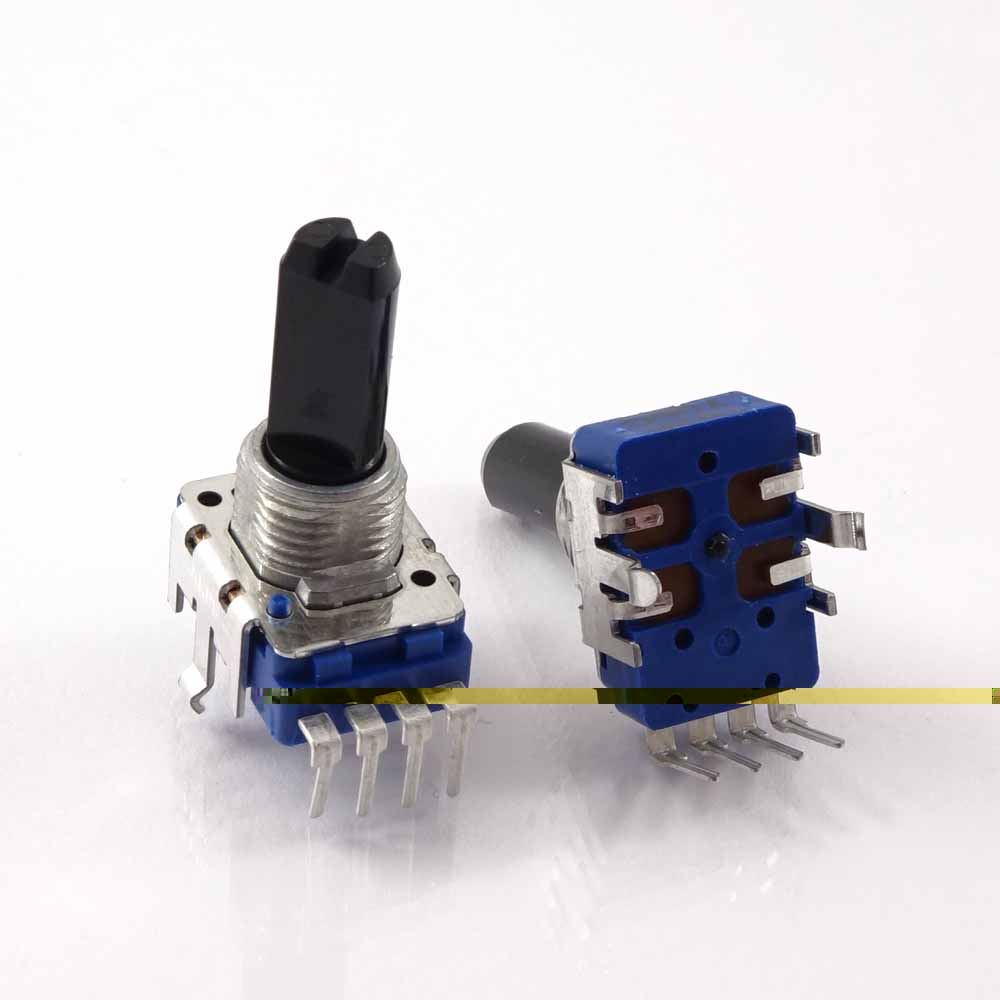

Rotary Poti vertikal, 11x11 10kOhm center click
Synth-Parts
Rotary Poti vertikal, 11x11 10kOhm center click
Rotary Potentiometer vertikal 11x11 mm with center click, 10kOhmSubstitute rotary potentiometer for Roland MC-909The rotary pot fits also inKorg electribe EMX1 Korg electribe ESX1here the axis sticks out 2,5 mm.Electrical properties:The nominal resistance has 10 k? (Kilo-Ohm), the electric resistance gradient runs linear. Appearance (technical characterisation):The casing measures 11 x 11 mm, the total length without pins is 25 mm. In this total length the casing is 7,5 mm long. On this casing is the thread with 5 mm length connected and out of the thread the axis rises with 12,5 mm length. The axis has a diameter of 6 mm and is flattened on a length of 12 mm. It is made of black plastic. Its head has a slot and ends in corner radius. The thread, which surrounds the axis, has the screw measure M9 x 0,75 mm.The four solder contact pins are 0,8 mm wide (one of them) and they are arranged in a raster in a distance of 2,5 mm. The bented pins, which are sticking out to the front, are necessary for the electrical function, in which the fourth pin has no electrical function.In the back range of the casing the metallic edge-socket connector is mounted. The connector will be fixed at the printed circuit board by pressing in the snap in pin.Between the two snap in holdings the distance is 13 mm. The holders latch in the board and fix the potentiometer mechanically.Useful hint:The potentiometer is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

€ 4 .94*
tactile switch 4,3 mm
ALPS
tactile switch 4,3 mm
1 pcs. tactile switch suitable for modelsKorg MonopolyKorg PolySixKorg BX3/CX3      first Version build in 1980'sRoland JX 10PRoland Jupiter 8Roland TR808Part Number: Korg: 37503400, Roland: 13169601The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

From
€ 0 .93*
tactile switch 5 mm for Roland
ALPS
tactile switch 5 mm for Roland
tactile switch suitable for models RolandD-50, D-70Juno 1, Juno 2, Juno 106, Juno 106SG-800S50W30Roland Part Number: 13169633 and 13129753The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

From
€ 0 .65*

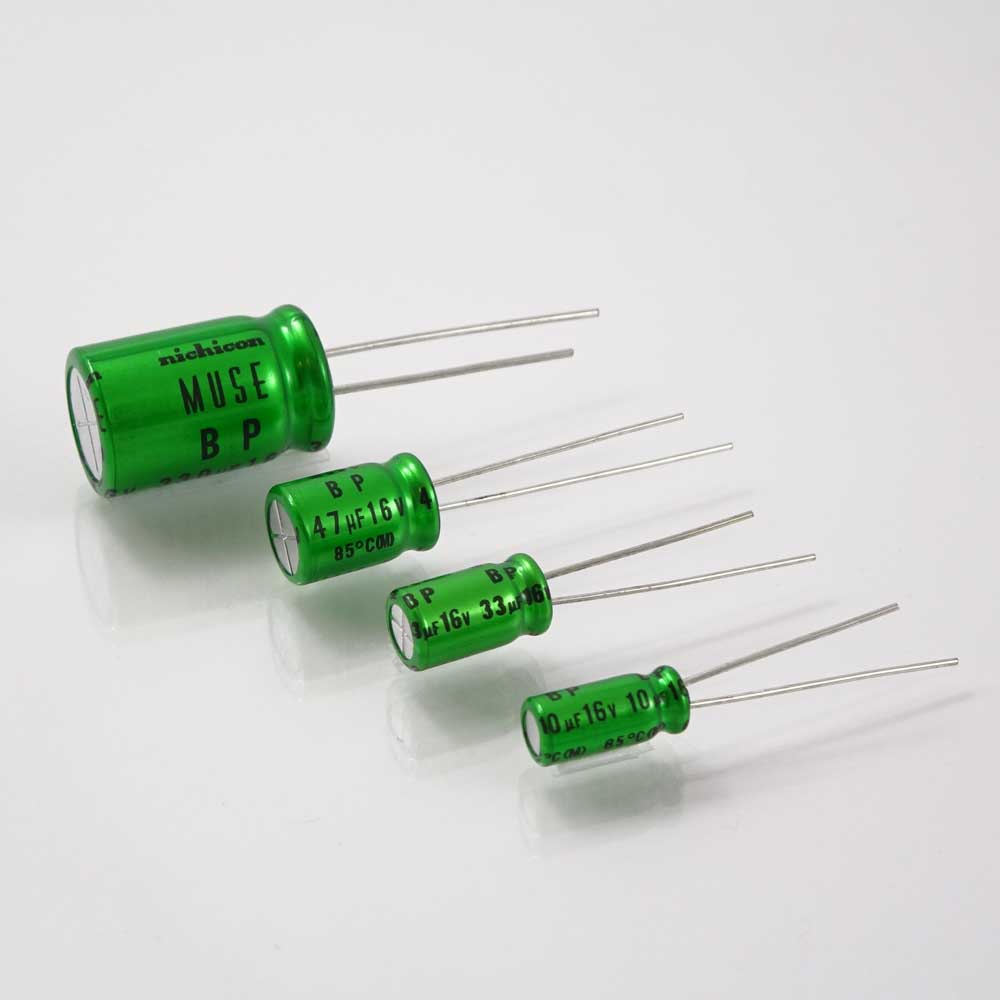

Bipolar Capacitor 47uF/16V for Audio, Radial, Nichicon Muse ES
Nichicon
Bipolar Capacitor 47uF/16V for Audio, Radial, Nichicon Muse ES
1 piece bipolar Elko 47uF/16V for Audio circuitsManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The series Muse ES is developt spezial for use in audio signals path.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

€ 0 .77*
YKB21-5078 - Phone Jack 1/4- 6.3 mm for printed circuits Stereo
Jalco
YKB21-5078 - Phone Jack 1/4- 6.3 mm for printed circuits Stereo
1 pcs. Phone Jack 1/4 inch - 6.3 mm, stereo witch switch, printed circuit for Korg, Roland or Yamaha Instrumentsthis Phone Jack corresponds to these parts:YKB21-5078HLJ-2305HTJ-064-16DThese phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

€ 4 .34*
YKB21-5006 - Phone Jack 1/4- 6.3 mm for printed circuits Stereo
Jalco
YKB21-5006 - Phone Jack 1/4- 6.3 mm for printed circuits Stereo
1 pcs. Phone Jack 1/4 inch - 6.3 mm, stereo with 2 switch, printed circuit for Korg, Roland or Yamaha Instrumentsthis Phone Jack corresponds to these parts:YKB21-5006HLJ-4306-01-3040HTJ-064-04These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

€ 6 .88*

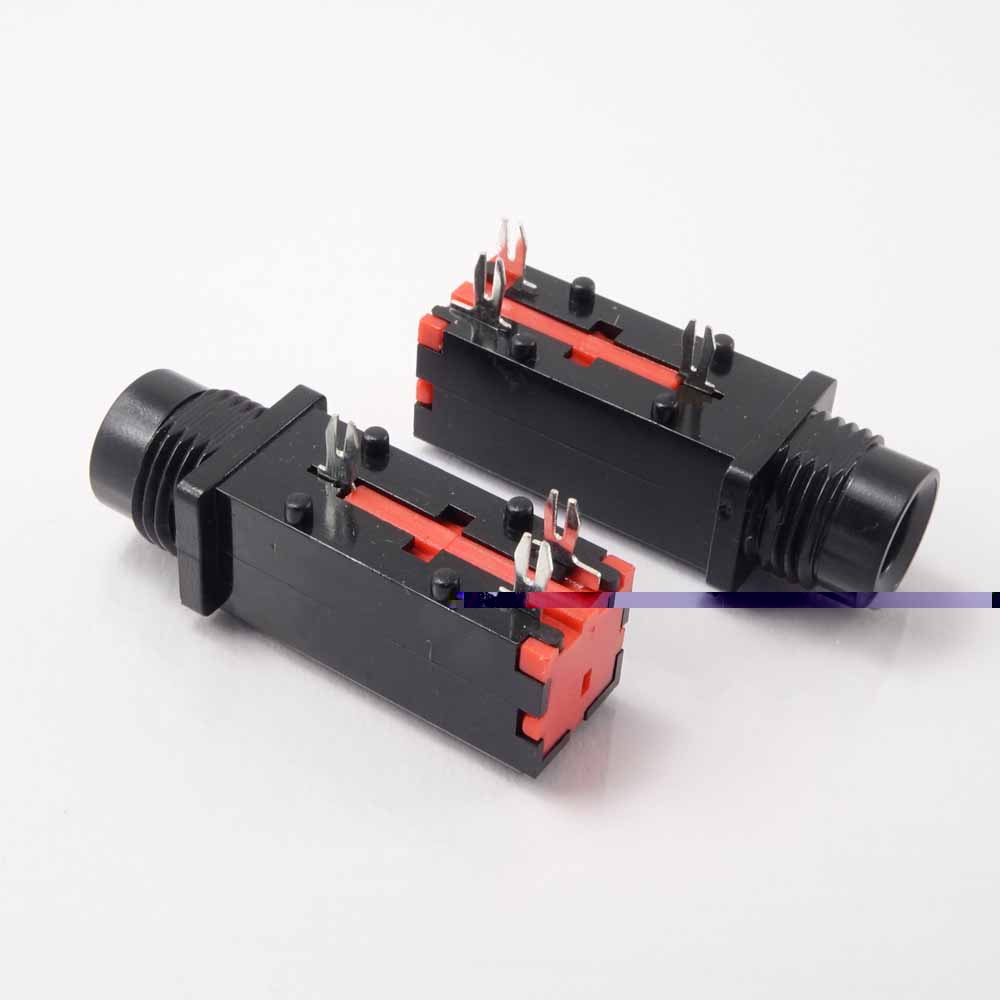

Phone Jack 1/4 - 6.3 mm for printed circuits Mono with switch
Synth-Parts
Phone Jack 1/4 - 6.3 mm for printed circuits Mono with switch
1 pcs. Phone Jack 1/4 inch- 6.3 mm, mono with switch, for printed circuit used Roland or Yamaha InstrumentsPay attention! The solder contacts are arranged staggertly.The item is the same asHLJ 0521-01-1110HLJ 0541-01-1110HLJ 1520-01-3110HLJ 1540-01-3110This part is used inRoland Ersatzteilnummer 13449125  Yamaha Ersatzteilnummer LB203090Yamaha Ersatzteilnummer LB301930Technical description:The offered phone jack for PCB mounting is a mono jack one switching contact for 1/4 inch. The housing is made of black synthetic material and the electrical parts are made of a copper alloy with a tin coating. Praktikal tip for phone jack:Pay attention! The solder contacts are arranged staggertly.These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

€ 2 .44*
Bipolar Capacitor 47uF/50V for Audio, Radial, Nichicon Muse ES
Nichicon
Bipolar Capacitor 47uF/50V for Audio, Radial, Nichicon Muse ES
1 piece bipolar Elko 47uF/50V for Audio circuitsManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The series Muse ES is developt spezial for use in audio signals path.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

€ 1 .25*

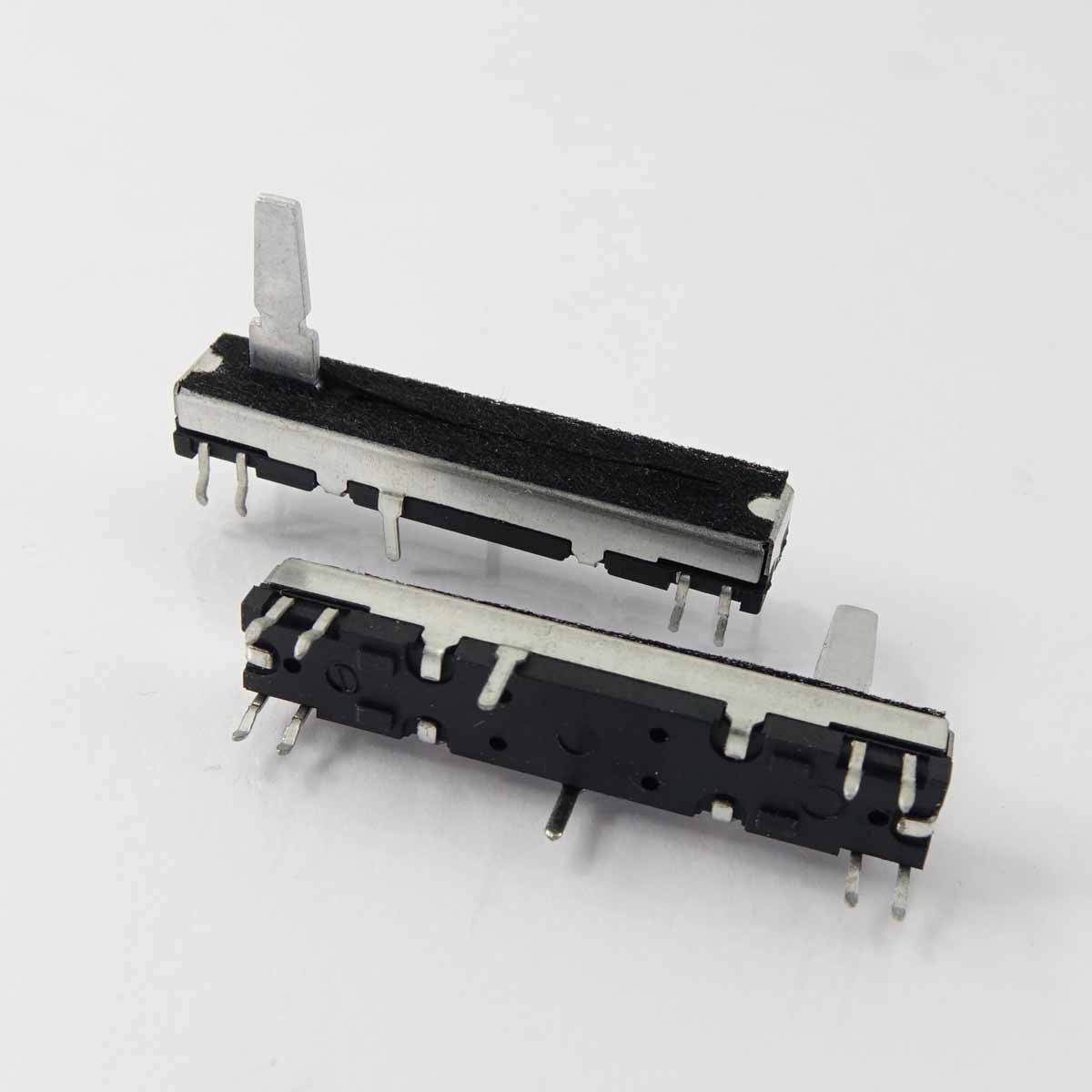

Slidepotentiometer für Roland Juno 106 - EWA-NK0D15B54
Synth-Parts
Slidepotentiometer für Roland Juno 106 - EWA-NK0D15B54
1 pcs. Slide potentiometer with 30mm travel and 15mm Lever. (Custom built with dust cover for Synth-Parts)Suitable for Roland Juno 106        all without Bender Board This volume control with the labelling EWA-NK0D15B54 is no longer available from manufacturer Panasonic because the pot is not longer produced by them. We offer here a slide potentiometer with the same technical performance as the original part. Electrical properties: The stereo nominal resistance has 50 kOhm, the electric resistance gradient is linear. The potentiometer is construed for a power of 0,06 Watt. Appearance (technical characterisation): This slide potentiometer has been built in in the past in many instruments and audio equipements. The particular embodiment of this potentiometer is the arrangement of the solder contact pins, which today are no longer usual. In total eight solder contact pins are laterally ordered to a group of four pins at the top and the end of the slide potentiometer. On both sides the solder pins are staggered in reverse order. Because of this arrangement the volume control fits only in a specific mounting position. The slide potentiometer has a travel of 30 mm. Its metallic casing measures 45 x 8 mm, the height without lever is 7 mm. The lever is made of metall. Its height is 15 mm, the breadth is 4 mm at the top and 5 mm at the bottom. Depth is 1,2 mm. The eight solder contact pins are 0,8 mm wide (one of them) and they are arranged in a distance of 3 mm. The bented pins are necessary for the electrical function. In medium range of the casing the metallic edge-socket connector is mounted. By these connectors the slide potentiometer will be fixed mechanically. Useful hint: The volume control is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

From
€ 7 .50*
Power cable 2 pol for Roland, 2m
SCHULZKABEL
Power cable 2 pol for Roland, 2m
Power cabel 2m with 2P plug for Roland InstrumentsVDE testedCable: H05VV-F2G0,75mm²Socket: C10Mains plug CEE 7/7 earth contactLength: 2 mAlso forKorgAkai

€ 9 .64*
1 pcs. Single pole push switch, 250V/5A with solder lugs SDDLD10900
E-Switch
1 pcs. Single pole push switch, 250V/5A with solder lugs SDDLD10900
1 pcs. Single-pole push switch in the switch design - OFF with solder terminals for cable assembly suitable for modelsKorg M1, M1RKorg T1, T2, T3Korg Part Number: 375006100The power switch corresponds to the ALPS switches SDDLD10900 TV5. This is no longer manufactured by ALPS.Termination Solder LugMounting holes with threadVDE-tested Supplied without capMechanical Description:The housing of the switch is made of nylon 66. The switch is provided for a screw in a housing and has two threaded holes for M3 x 0.5 screws. The spacing of the mounting holes is 20 mm. The housing cut job of performing the switching element should be 4x4 mm. The switch itself has a width of 10 mm, a length of 27 mm and a height of 17.90 mm. The protruding switching element has a length of 18 mm. Electrical properties:The electrical components are made of copper with a silver or tin plating. The electrical connection is made with solder connections for cable assembly. The length of the terminals is 4.2 mm and a width of 3 mm.The electrical load is 5 A at 250 VAC.Knowledge in soldering is required for switch replacement.

€ 6 .95*
Roland SK3 Rubbercontact 12P x1
Roland
Roland SK3 Rubbercontact 12P x1
1 pc. Contact rubber for old Roland keyboard Features:    Height of contacts: 8 mm    width of the strip:   16 mm    Length of the strip: 162 mm    Number of contacts per strip: 12 contactsOne contact strip consists of 12 contacts and thus covers one octave.This contact rubber has a notch to allow the contact rubber to be split. The division occurs with 7/5 contacts

€ 13 .90*
Replacement stereo rotary potentiometer for Roland Fantom X-series, volume control EVJY10FB6A24
Synth-Parts
Replacement stereo rotary potentiometer for Roland Fantom X-series, volume control EVJY10FB6A24
1 pcs. Replacement stereo rotary potentiometer for Roland Fantom X-series, suitable for volume control and ext. Level -  EVJY10FB6A24Roland Fantom SRoland Fantom FARoland Fantom X6Roland Fantom X7Roland Fantom X8Roland RD-64This volume control is no longer available at the original equipment manufacturer Roland, because Panasonic, the producer of the pot, does not longer produce the production-model. The here shown replacement pot is identical in construction and 100% compatible with the original Roland part volume EVJY10FB6A24.Electrical properties:The stereo nominal resistance has 20 Kilo-Ohm, the electric resistance gradient is logarithmic. The potentiometer is construed for a power of 0,05 Watt.Appearance (technical characterisation):The casing measures 12 x 12 mm, the total length without pins is 22,5 mm. In this total length the casing is 7,5 mm long. On this casing is the thread with 5 mm length connected and out of the thread the axis rises with 10 mm length. The axis has a diameter of 6 mm and is flattened on a length of 7 mm. It is made of black plastic. Its head has a slot and ends in corner radius. The thread, which surrounds the axis, has the screw measure M9 x 0,75 mm.The six solder pins are 0,6 mm wide (one of them) and they are arranged in a distance of 2 mm (pitch). The curved pins, which are sticking out to the front, are necessary for the electrical function.In medium range of the casing the metallic snap in connector is mounted. These connector will fix the potentiometer at the printed circuit board by pressing in.Between the two snap in holdings the distance is 13,8 mm. The holders latch in the board and fix the potentiometer mechanically.Useful hint:The volume control is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

From
€ 6 .25*

Order spare parts for Roland easily online.


E-Pianos and Music Workstationare devices that are exposed to a continuous load and must withstand it reliably. This is true for private use, as well as for professional use. If the smallest components do not work, the entire system cannot deliver the desired first-class sound. We offer in our store Roland spare parts products that continue brand quality even after replacement in the usual way. This includes e-piano spare parts and music workstation spare parts, but also encoder for Roland, jack socket for PCB mounting or LCD display for Roland.All Roland spare parts in our store have one thing in common: they convince in material and workmanship quality. We know that when musicians are hitting the keys or technicians are doing their job, there is no time for long breakdowns. Therefore, the Roland spare parts are optimally compatible and can be replaced without any problems and, above all, quickly and easily. The gig or rehearsal can continue immediately afterwards. Just give us a call or send an email if you are not sure which spare part for Roland you should buy, or which e-piano spare parts or music workstation spare parts are the right ones for the models you use. We will be happy to advise you!

Do not compromise on quality


A system is only as powerful as its smallest component. This means for you that Roland spare parts should also be purchased and installed in brand quality that you know from the manufacturer. This applies to tact switch for Roland, as well as to the LCD display for Roland or any other E-Piano spare parts. If you compromise here, you are making a big mistake. Professionalism, which you need on stage, is also essential for spare parts. No matter if you want to buy an potentiometer for Roland or a tact switch for Roland, the same professional quality is appropriate as if a device is bought completely. For all questions we are happy to help you. Jack for PCB? E-Piano spare part? No matter what you need: We advise you competently, so that your favorite music can sound as usual again. Online ordering is quick and uncomplicated, and we are always your efficient contact partner when it comes to installing the spare parts.
