1 pcs. Kawai Volume Slider Knob for CA/CN Serie  Ivory/GrayKawai CA95Kawai CN23 Technical Description of Kawai Button:This Volume Slider knob will be put on slide potentiometer on your Kawai Pianos

1 pcs. Korg BA-W Contact rubber for KeyboardThis are brand new contact rubbers.A contact rubber consists of 12 or 13 contacts and covers an octave. A rubber contact strip consists of 12 or 13 contacts and covers an octave. For complete replacement of the rubber contact strips in a keyboard with 61 keys you will need 4 contact rubber with 12 contacts and 1 contact rubber with 13 contacts.

Korg BA-W Replacement Keys  Color: white mechanical construction: This Keys are only available as complete set for one Octave. There is one part for a middle Octave, one part for the first and one part for the last Octave.

1 pcs. Modal Synthesizer Encoder Typ12 20D no click with switchPractical advice: These encoder is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

1 pcs. Modal Synthesizer Encoder with clicks with switchPractical advice: These encoder is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

1 pcs. Modal Sysnthesizer tactile switch The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.why should I solder new pushbutton

1 pcs. Housing JST XH - 8 Pol Technical hint:These part is only housing without electrical contacts. For these contacts you will need a special Crimp tool.

1 pcs. Yamaha S90ES KNOB S, ENCODER Data Dial

1 pcs. Yamaha Tyros 4/5 SLIDER KNOBused at SONG, ASSIGN, 1−8

1 pcs. Phone Jack 1/8 inch - 3.5 mm, stereo witch switch, printed circuit for Korg, Roland or Yamaha InstrumentsJalco phone jack YKB21-5352This phonejack is a stereo jack socket with 7 solder legs. In addition to the signal contacts for stereo signal transmission, this jack has 2 switching contacts that are designed as normally closed contacts. These jack sockets are basically downwards compatible. For example, this 7-pin socket can also be used for the 3-pin version. To do this, it is sufficient to cut the extra soldering legs.Furthermore, there are two plastic noses on the underside, which are intended as a guide and holding tiller. These phone jack is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.

1 pcs. Varta CR2450 with 3 solder pinAttention: Shipping for Europe only Technical Description:The dimensions of CR2450 are diameter of 24 mm and a thickness of 5 mm. Due to the soldering legs, the installation height is 10 mm for this horizontal version. The positive pole owns two interconnected soldering legs at a distance of 10 mm. The negative pole has one solder leg.Practical tip:The batterie is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.Information for handling old Battery's

1 pcs. Yamaha LP7A LP5A Pedalcable

1 pcs. Yamaha LP7A LP5A Pedal ContactrubberThe Yamaha LP7A and LP5A pedals all use this rubber pad on all three pedals.

1 pcs. Yamaha LP7A LP5A Pedal PCB

1 piece Electrolytical Capacitor 33,000uF/16V for Audio circuits -discontinued-Manufakturer: Cornell Dubilier / Knowles The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

1 piece bipolar Elko 10uF/50V for Speaker NetworksManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The DB series is developt spezial for use in Speaker Networks. Spezial benefit is radial construstion.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

1 piece bipolar Elko 1uF/50V for Speaker NetworksManufakturer: NichiconIn E-Pianos, Synthesizern and Keyboards bipolar electolytical capacitors are used for audio signal decoupling in Audio signal path. After 20 years these capacitors  are aged. In much cases the messured capacity after 20 years of use is 20 % distant from par value.Here i offer spezial bipolar Elkos from manufakturer Nichicon. The DB series is developt spezial for use in Speaker Networks. Spezial benefit is radial construstion.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

Key's 16L Style suitable for Yamaha This keyboard is used in these modells:Yamaha PSR-340Yamaha PSR-450Yamaha PSR-710Yamaha PSR-750Yamaha PSR-910Yamaha PSR-950Yamaha PSR-1500Yamaha PSR-3000Color: whiteThis key is newmechanical construction:Keys for this Keyboard are not available as single keys. One Octave will be a set of three single spare parts. One part for the black Keys. One part for D/A/F, and one part for C/E/F/B.

1 pcs. E-Mu Emax Volume or Data Entry Slider 10K Ohmpractical advice:The slider is firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.

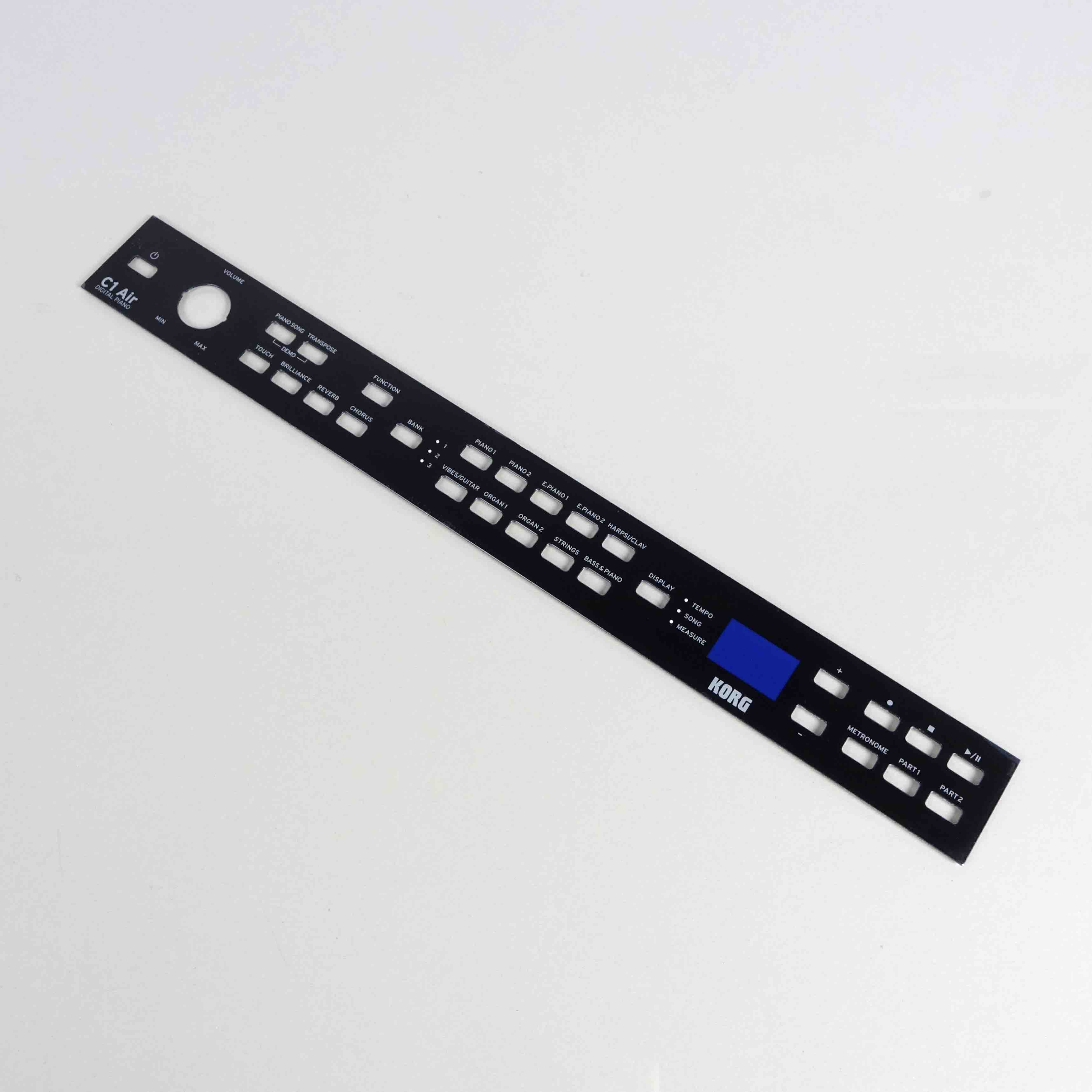

1 pcs. KORG C1 Air Beschriftetet Ersatzfolie schwarz

1 pcs. KORG C1 Air Bedieneinheit schwarz inkl. Bedienplatine

1 piece Tantal Capacitor 22uF/16V RadialBe sure to check the polarity of tantalum capacitors. Incorrect polarity will destroy the capacitor.The capacitors are firmly soldered to a circuit board. For replacing  craftsmanship and experience in soldering is required.

1 pcs. Kurzweil Replacement stereo rotary potentiometer for volume controlElectrical properties:The stereo nominal resistance has 10 Kilo-Ohm, the electric resistance gradient is logarithmic. The potentiometer is construed for a power of 0,05 Watt.Appearance (technical characterisation):The casing measures 17 mm, the total length without pins is 36,5 mm. In this total length the casing is 11 mm long. On this casing is the thread with 5 mm length connected. The axis has a diameter of 6 mm. It is made of Metall. The thread, which surrounds the axis, has the screw measure M7 x 0,75 mm.The six solder pins are 1 mm wide (one of them) and they are arranged in two rows in a distance of 5 mm (pitch).Useful hint:The volume control is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

1 pcs. Battery holder for CR2032Attention: Shipping for Europe only Technical Description:  Information for handling old Battery's
