Yamaha DX-Series

1 pcs. Power cabel 1.5m with 2P Europlug and solderlugsPower Cord with on side open adn one side Euro PlugOriginal cable fragile or already damaged?For instruments that are 30 years and older, it makes sense to check the power cord. Has the plastic become brittle over the years or is there damage at the kinks of the cable?

1 pcs. Yamaha DX7 II OLED Display NEW yellowReady-to-plug prepared OLED display for replacement in Yamaha DX7 II. The new OLED display is supplied by us with a new cable ready to plug in. Everything is screwed. No soldering required.Note on OLED technology:OLED - organic light-emitting diode. The advantage of OLED technology is that each pixel is illuminated. This makes the OLED display easy to read from all sides, even from extreme viewing angles. Furthermore, it is also very easy to read in sunlight.Mechanical hints for the replacement of the OLED display in the Yamaha DX7II:Please consider in this case that the mechanical effort to get to the display in the instrument is quite high. Among other things, the keyboard and the mainboard must be disassembled. Everything is screwed. No soldering necessary.The display has a cover made of Plexiglass which is glued on the display and has to be transferred to the new display. We have had good experience with the following method: Insert fishing line or sturdy sewing yarn between the display and the cover and use a sawing motion to separate the adhesive.Lifetime of OLED Display:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

1 pcs. OLED Display New forYamaha DX21This Display replacement is a really easy swapping. You will only need a screwdriver.These different Display versions are available:BlueRed/OrangeYellowWhiteLifetime:The lifetime is specified by the manufacturer with 50,000 to 100,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

1 pcs. Yamaha DX5 OLED Display NEW blueReady-to-plug prepared OLED display for replacement in Yamaha DX5. The new OLED display is supplied by us with a new cable ready to plug in. Everything is screwed. No soldering required.Mechanical hints for the replacement of the OLED display in the Yamaha DX5:The mechanical effort required to remove the display from the instrument is relatively simple in this case. The cover of the synthesizer can be lifted up after loosening a few screws. Now the circuit board on which the display is mounted must be unscrewed. The display itself is screwed on and the cable is plugged in.Snipping off the metal tab:The OLED display is inserted into metal brackets in the Yamaha DX5. A small metal tab needs to be snipped off here. This can be done using a pair of side cutters.Recommendation:Disconnect the circuitry that generated the backlight voltage for the old display. Simply cut off two components using small side cutters.Instructions are included with the display.Note on OLED technology:OLED - organic light-emitting diode. The advantage of OLED technology is that each pixel is illuminated. This makes the OLED display easy to read from all sides, even from extreme viewing angles. Furthermore, it is also very easy to read in sunlight.Lifetime of OLED Display:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

 1 pcs. Cap round for power switch

Complete Set 42 Taster  suitable for Yamaha  Yamaha DX7Part Number:  KA905510We offer here brand new OEM replacement parts.The buttons are firmly soldered to a circuit board. For replacing the button craftsmanship and experience in soldering is required.Why should I solder new pushbutton

1 pcs. Power cabel 2m with 2P plug for Yamaha  InstrumentsVDE testedCable: H05VV-F2G0,75mm²Socket: C10Mains plug CEE 7/7 earth contactLength: 2 m

1 pcs. Yamaha DX5 OLED Display NEW whiteReady-to-plug prepared OLED display for replacement in Yamaha DX5. The new OLED display is supplied by us with a new cable ready to plug in. Everything is screwed. No soldering required.Mechanical hints for the replacement of the OLED display in the Yamaha DX5:The mechanical effort required to remove the display from the instrument is relatively simple in this case. The cover of the synthesizer can be lifted up after loosening a few screws. Now the circuit board on which the display is mounted must be unscrewed. The display itself is screwed on and the cable is plugged in.Recommendation:Disconnect the circuitry that generated the backlight voltage for the old display. Simply cut off two components using small side cutters.Instructions are included with the display.Note on OLED technology:OLED - organic light-emitting diode. The advantage of OLED technology is that each pixel is illuminated. This makes the OLED display easy to read from all sides, even from extreme viewing angles. Furthermore, it is also very easy to read in sunlight.Lifetime of OLED Display:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

1 pcs. Felt for Yamaha FS Keyboard Key Stopper Felt CappuchinoThe key felt on many older digital pianos, keyboards and synthesisers has started to show its age. As a result, the keyboard can become very noisy when played. The keyboard is rattling.This felt has a high density, which gives it a high degree of strength. This strength makes the felt very durable and robust. However, its ability to dampen mechanical noise is slightly lower.Fitting a new felt pad will solve this problem. A simple but effective solution.We have had this felt pad specially made by a company that specialises in the manufacture and processing of a wide variety of felts. You will receive a high-quality piano felt pad of the very best standard. Made in Germany. You will need one for a complete Keyboard with 88 keys.The felt can be trimmed for keyboards with fewer keys.One-sided self-adhering

1 pcs. Volume Slide potentiometer with 30mm travel. Suitable forYamaha DX IIYamaha DX IIDYamaha DX IIFD-----     Discontinued - out of production    -------Electrical properties:The stereo nominal resistance has 10 kOhm, the electric resistance gradient is logarithmic. The potentiometer is construed for a power of 0,06 Watt.Appearance (technical characterisation):This slide potentiometer has been built in in the past in many instruments and audio equipements. The particular embodiment of this potentiometer is the arrangement of the solder contact pins, which today are no longer usual. In total eight solder contact pins are laterally ordered to a group of four pins at the top and the end of the slide potentiometer. On both sides the solder pins are staggered in reverse order. Because of this arrangement the volume control fits only in a specific mounting position. The slide potentiometer has a travel of 30 mm.In medium range of the casing the metallic edge-socket connector is mounted. By these connectors the slide potentiometer will be fixed mechanically.Useful hint:The volume control is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

1 pcs. Slide potentiometer with 30mm travel. Suitable forYamaha DX II - Data EntryYamaha DX IID - Data EntryYamaha DX IIFD - Data Entry This part is no longer availabel from Yamaha.This volume control with the labelling EWA-NFOC is no longer available from manufacturer Panasonic because the pot is not longer produced by them. We offer here a slide potentiometer with the same technical performance as the original part.Electrical properties:The stereo nominal resistance has 10 kOhm, the electric resistance gradient is logarithmic. The potentiometer is construed for a power of 0,06 Watt.Appearance (technical characterisation):This slide potentiometer has been built in in the past in many instruments and audio equipements. The particular embodiment of this potentiometer is the arrangement of the solder contact pins, which today are no longer usual. In total eight solder contact pins are laterally ordered to a group of four pins at the top and the end of the slide potentiometer. On both sides the solder pins are staggered in reverse order. Because of this arrangement the volume control fits only in a specific mounting position. The slide potentiometer has a travel of 30 mm.In medium range of the casing the metallic edge-socket connector is mounted. By these connectors the slide potentiometer will be fixed mechanically.Useful hint:The Potentiometer is soldered on the circuit board. You should have mechanical skills and experience in soldering to replace it.

1 pcs. LCD Display brandnew forYamaha DX7this is  a plug in ready Display replacement for Yamaha DX7. You will only need a screwdriver for this replacement.These different Display versions are available:BlueOrangeWhiteFor this replacement you will only need a screwdriver. We deliver this LCD Display plug in ready.Attention on the Orange Display: Here, a height difference of 3 mm must be bridged or compensated.Lifetime:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

1 pcs. SLIDE POT. BH10K OHM DX21Semiconductors and electronic assemblies are sensitive to electrostatic charge. Please observe the regulations on ESD handling.The exchange and return of semiconductors and electronic assemblies is excluded after opening the packaging.

1 pcs. TRANSISTOR 2SC2555Semiconductors and electronic assemblies are sensitive to electrostatic charge. Please observe the regulations on ESD handling.The exchange and return of semiconductors and electronic assemblies is excluded after opening the packaging.

1 pcs. Yamaha DX7 II OLED Display NEW greenReady-to-plug prepared OLED display for replacement in Yamaha DX7 II. The new OLED display is supplied by us with a new cable ready to plug in. Everything is screwed. No soldering required.Note on OLED technology:OLED - organic light-emitting diode. The advantage of OLED technology is that each pixel is illuminated. This makes the OLED display easy to read from all sides, even from extreme viewing angles. Furthermore, it is also very easy to read in sunlight.Mechanical hints for the replacement of the OLED display in the Yamaha DX7II:Please consider in this case that the mechanical effort to get to the display in the instrument is quite high. Among other things, the keyboard and the mainboard must be disassembled. Everything is screwed. No soldering necessary.The display has a cover made of Plexiglass which is glued on the display and has to be transferred to the new display. We have had good experience with the following method: Insert fishing line or sturdy sewing yarn between the display and the cover and use a sawing motion to separate the adhesive.Lifetime of OLED Display:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

1 pcs. Yamaha DX5 OLED Display NEW yellowReady-to-plug prepared OLED display for replacement in Yamaha DX5. The new OLED display is supplied by us with a new cable ready to plug in. Everything is screwed. No soldering required.Mechanical hints for the replacement of the OLED display in the Yamaha DX5:The mechanical effort required to remove the display from the instrument is relatively simple in this case. The cover of the synthesizer can be lifted up after loosening a few screws. Now the circuit board on which the display is mounted must be unscrewed. The display itself is screwed on and the cable is plugged in.Recommendation:Disconnect the circuitry that generated the backlight voltage for the old display. Simply cut off two components using small side cutters.Instructions are included with the display.Note on OLED technology:OLED - organic light-emitting diode. The advantage of OLED technology is that each pixel is illuminated. This makes the OLED display easy to read from all sides, even from extreme viewing angles. Furthermore, it is also very easy to read in sunlight.Lifetime of OLED Display:The lifetime is specified by the manufacturer with 50,000 operating hours. After this specified drive time, the display still has 50% of its original luminosity.

Yamaha DX5 Recapping set Switching Power Supply 230 VACRecapping Set for 230VAC version.The wear parts of the electronics are electrolytic capacitors. Capacitors are aging, and you will see the effect at first when it comes to greater damage because of overvoltage. Warning: Switching power supplies store high amounts of energy for long periods of time. You are working on assemblies that operate at 230 V AC and approx. 300 V DC.You are carrying out this work at your own risk and under your own responsibility.With an age of more than 30 years, the Yamaha DX5 is in any case one of the instruments in which an replacement of all electrolytic capacitors is strongly advised.Our recapping set is made up of Capacitors, which have been specially developed for use in audio applications. The manufacturer Nichicon is for us the manufacturer with a good quality at reasonable prices offers.This Recapping Set contains all necessary Capacitors for the power supply in the Yamaha DX5.Warning PSU Recapping:Risk of electric shock: Switching power supplys store high voltage and high energy for a very long period of time.When working with these spare parts offered here, you are working directly in a 230VAC circuit.Observe polarity. Incorrect installation will cause explosion and fire.For experts only: Be aware of dangers of electric current

1 pcs. MIDI DIN socket female 5 pin for printed circuitJalco YKF51-5069used by:KorgRolandYamaha These part is firmly soldered to a circuit board. For replacing craftsmanship and experience in soldering is required.Price is for 1 piece.

1 piece Yamaha DX5 OS Version 6.0 EPROMwe offer here last known OS version for the Yamaha DX5Mounting instructions for the EPROM in the Yamaha DX5:The EPROMs in the Yamaha DX5 are socketed and can be carefully prised out of their sockets.Older OS versions consist of two EPROMs, each with 128K. The EPROM for the latest OS version 6.0 consists of just one EPROM with 256K. The EPROM for OS version 6.0 is inserted into the socket for IC12.Depending on the serial number of the Yamaha DX5, two jumper wires may need to be re-soldered.Practical notes:IC's/Eproms are sensitive to static charge!Recycling of E-Proms:The best recycling is always the reuse in the original form. We will be happy if you send us back your old eprom. We will then reuse it with the updated OS version.

1 pcs. Felt for Yamaha FS Keyboard Key Stopper Felt white softThe key felt on many digital pianos, keyboards and synthesisers has started to show its age. As a result, the keyboard can become very noisy when played.The keyboard is rattling.This felt is relatively soft. Because of this softness, the felt compresses easily, meaning that its effective thickness under load is considerably less than the stated 3.5 mm. This softness provides very good cushioning.Fitting a new felt pad will solve this problem. A simple but effective solution.We have had this felt pad specially made by a company that specialises in the manufacture and processing of a wide variety of felts. You will receive a high-quality piano felt pad of the very best standard. Made in Germany. You will need one for a complete Keyboard with 88 keys.The felt can be trimmed for keyboards with fewer keys.One-sided self-adhering

1 pcs. Battery holder for CR2032 for PCB mountingAttention: Shipping for Europe only Technical Description:  Information for handling old Battery's

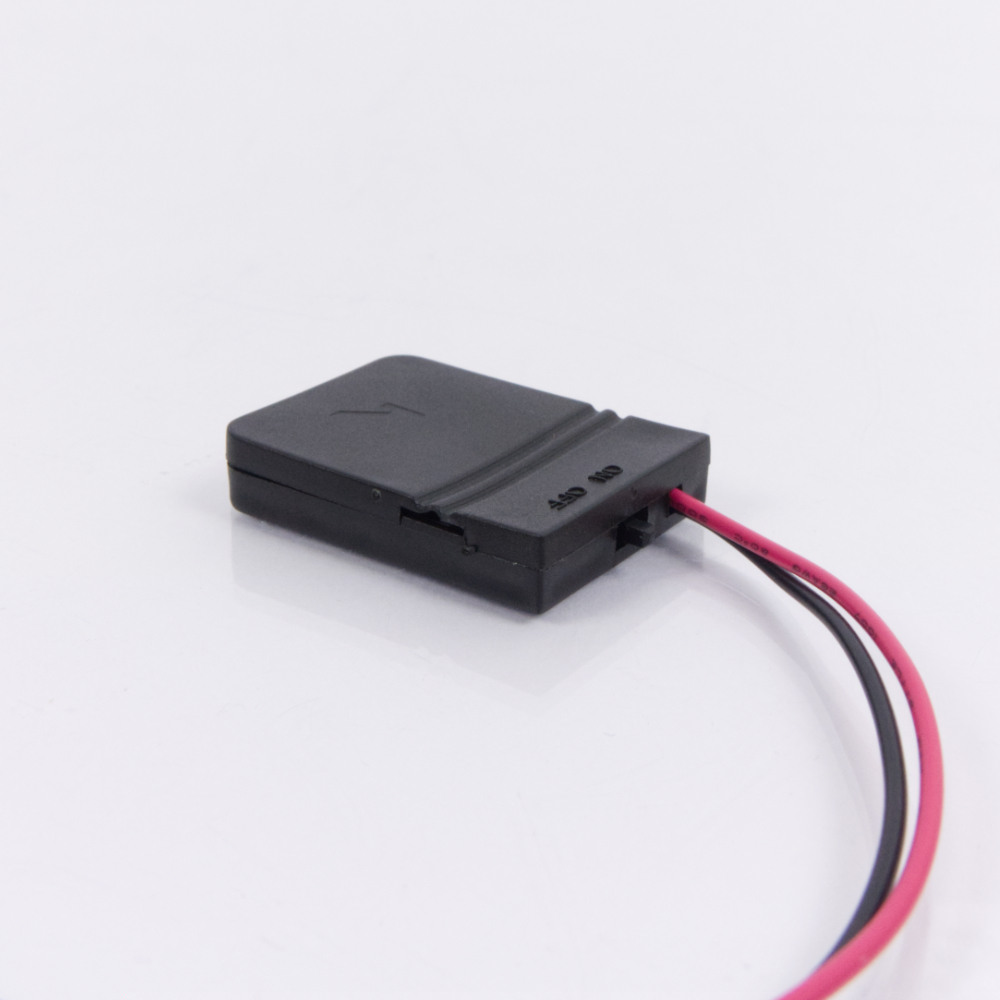

1 pcs. Battery holder for CR2032Attention: Shipping for Europe only Technical Description:  Information for handling old Battery's
