Kurzweil PC3A LCD Display white plug and play
€144.99
Actual stock: 3 pcs.
Shipping Mo, We, FR
Delivery time DE approx. 1-3 business days.
Delivery time EU approx. 4-14 business days.
Delivery time Worldwide approx. 6-30 business days.
Product information "Kurzweil PC3A LCD Display white plug and play"
1 pcs. white LCD Display with LED Backlight replacement including cable Kit for
- Kurzweil PC3A6
- Kurzweil PC3A7
- Kurzweil PC3A8
We offer an absolutely equivalent display using modern LED technology for backlight.
Note on the PC3X series from Kurzweil:

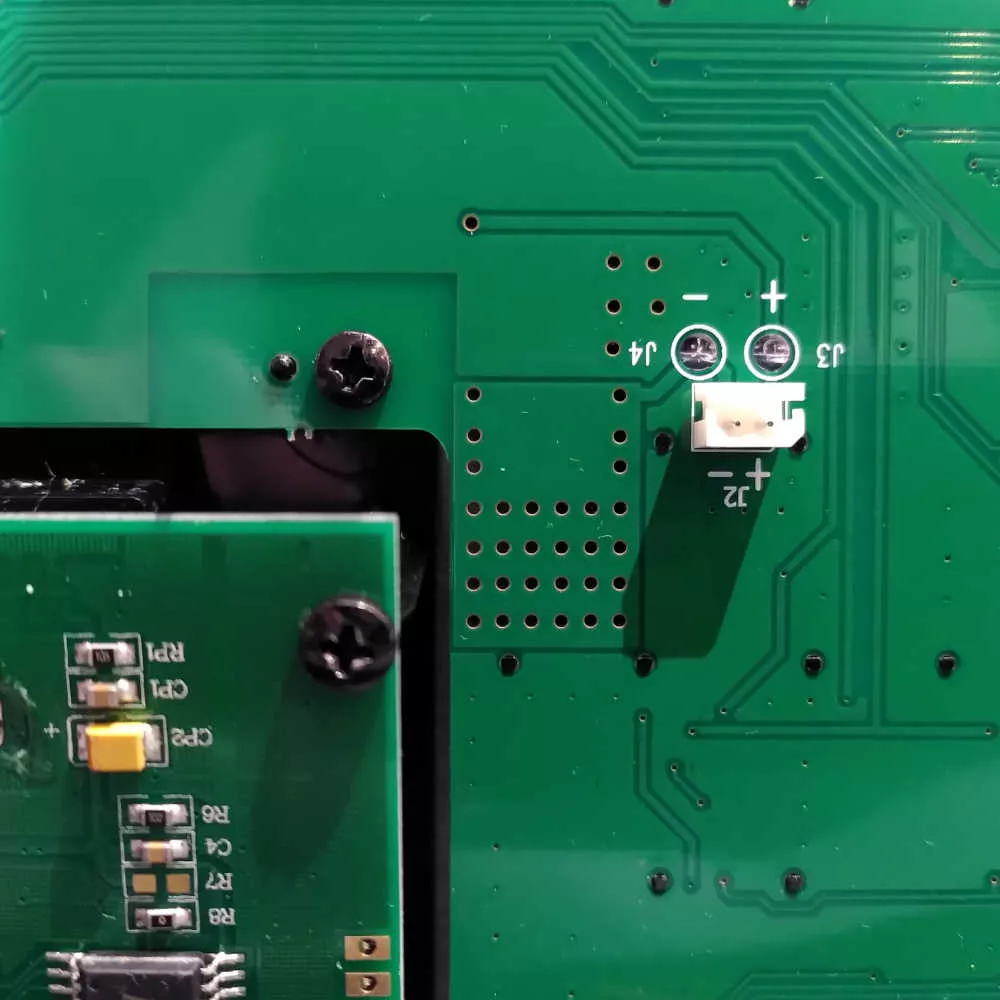

The replacement display offered here is the appropriate replacement for Kurzweil displays that already use LED backlighting. This can be identified by a short 2-pin connector to the right of the display.
Â
Color: Black Character  / White Background
Delivery scope:
Display ready wired
Mounting parts
Instruction for replacement
Â
ÂNotes on installation The LCD Display in Kurzweil PC3X
The original Kurzweil display has different dimensions to today's commercially available displays. We have therefore developed an adapter board to adapt this. We supply the display pre-wired and pre-assembled.
This work is to be done only by technically, best electrotechnically savvy people.
The contrast and brightness of the display can be adjusted as usual using the controls in the instrument.
No soldering required.
All you need is a screwdriver and a side cutter.
Â
| Brand: | for Kurzweil |
|---|---|
| Item condition: | new |
| Operating life: | 40.000 h |
| Producttype: | LCD-Display |
| Series: | PC3K |
